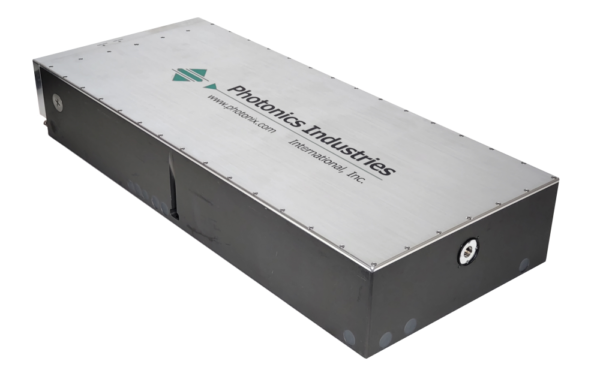

Dual Head Laser

DM20/30/40-527-DH | DM50/60-527-DH | DM100-527-DH | DM200-532-DH

Features

  • Repetition rate from:
    • Single shot to 10kHz for YLF
    • 1kHz to 30kHz for YAG
  • Reliable diode pumped technology
  • Proven industrial 24/7 reliability
  • Compact form factor
  • Output at 532nm or 527nm
  • Excellent energy stability for reduced noise
  • Beam profile optimized for homogenous illumination and light sheet generation
  • Optimized for PIV performance
  • Comparable pulses for perfect correlation
  • Highest energy per pulse for more illumination

*PI offers any of its DM Series lasers in a Dual Head (DH) option. This option, which combines the output from two identical lasers in an external beam combination box, allows the flexibility for the user to adjust the beams. In addition to short temporal pulse separation, this has the advantage of polarization, energy, and/or alignment independence. In addition, the two lasers can be triggered independently or simultaneously. What is sacrificed in compactness is gained in user flexibility.
* DM200-532-DH is a non-standard product, please contact us for specs

OUTPUT CHARACTERISTICS YLF
MODEL DM20/30/40-527 DM50/60-527 DM100-527
Wavelength (nm) 527
Pulse Energy (mJ)* 40/60/80@1kHz 100/120@1kHz 170@6kHz
Average Power (W) @ 3kHz* 60/90/120 150/180
Pulse Width (ns)† -170/150/130@1kHz -120@1kHz 260+/-50ns@5kHz
Repetition Rate* Single Shot to 10 kHz 0.5kHz to 10kHz
Pulse to Pulse Stability† < 0.5% rms 1% rms
Beam Diameter (nominal)† 5.0 mm 4.0+/-1mm
Beam Divergence† 8.0 mrad +/- 15% 8.0-9.0 mrad nominal
Beam Circularity† > 85%
Spatial Mode† 13 to 18
Beam Pointing Stability† < 25 urad < 20 urad
Long Term Stability† 1% rms
Interface RS 232 / External TTL Triggering / GUI software included
Warm Up Time < 5 min from standby or cold start
Electrical Requirement 100 – 240V 200 – 240V 100 – 240V
Line Frequency 50 – 60 Hz
Power Consumption (excluding chiller) 1.6/2.0/3.2 KW 3.4/3.6 kW 1.6 kW
Dimensions Laser Head 12 in x 26 in x 4.6‡ in 12 in x 26 in x 4.6+/+ in
(W x H x L) Controller 19 in x 17 in x 5.25 in (3U) 19 in x 13.25 in x 5.25 in (3U)
Weight Laser Head 85 lbs
Controller 20 lbs
Umbilical Length 3 m
Ambient Temperature 15 to 30 oC

* 2 head combined
† Each individual head
‡ Includes height of desiccant (0.35’’)

OUTPUT CHARACTERISTICS YAG
ModelDM60-532-DH DM100-532-DH DM150-532-DHDM200-532-DH
Wavelength (nm) 532
Average Power @ 10kHz*120 200300400
Pulse Energy (mJ) @ 10kHz*12203040
Pulse Width (ns) @ 10 kHz (nominal)†~190 ~130~200~110
Repetition Rate1 to 30 kHz 1 to 50 kHz
Pulse to Pulse Stability†< 1% rms
Beam Diameter (nominal)†3 mm 4.5mm
Beam Divergence† < 9 mrad 10 mrad
Beam Circularity†>85%
Spatial Mode† < 1525 to 30<15
Beam Pointing Stability† <25 urad
Long Term Stability† 0.5% rms
InterfaceRS 232/External TTL Triggering/GUI Software Included
Warm-up Time < 5 min from standby or cold start
Electrical Requirement 100-240V 200-240V
Line Frequency50-60 Hz
Power Consumption (excluding chiller)3.0 kW3.5 kW 4.5 kW 5.0 kW
Dimensions Laser Head (W x H x L) 2 in x 26 in x 4.6‡ in 24 in x 31 in x 4.6‡ in
Dimensions Controller (W x H x L) 19 in x 13.25 in x 5.25 in (3U) 19 in x 13.25 in x 5.25 in (3U) x2
Weight Laser Head85 lbs200 lbs
Weight Controller20 lbs24 lbs x2
Umbilical Length3m
Ambient Temperature15 to 30 °C

* 2 head combined
† Each individual head
‡ Includes height of desiccant (0.35’’)

Please contact us for more options
