DM UV Series
Nanosecond Lasers

Exceptional high pulse energy UV laser: Up to 60 mJ at 1 kHz, Nd:YLF

DM1-351-20| DM1-351-30 | DM1-351-60 | DM2-351-60

DM UV Series Multimode Nanosecond Lasers Brochure

Features

• Exceptional high pulse energy UV laser:
  Up to 60 mJ, 351 nm (Nd:YLF)
• Exceptional repetition rate control:
  Single shot up to 5 kHz
• Long nanosecond pulse width
  <30ns to 100s ns

Overview

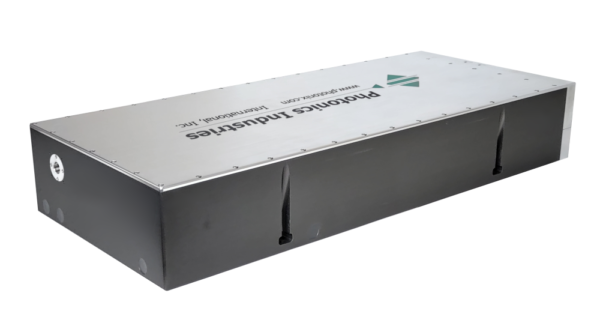

Photonics Industries’ DM UV Series 351 nm nanosecond lasers combine remarkably high pulse energies (up to 60 mJ) within a simple, rugged, and efficient form factor. Long nanosecond pulse widths (~100ns) and high pulse repetition rate (0 – 5 kHz) offer an ideal solution for many applications requiring high pulse energy, such as in semiconductor manufacturing. The DM UV is the most compact and highest pulse energy UV (351 nm) industrial nanosecond laser source, leveraging Photonics Industries pioneering intracavity harmonics and power-scaling technologies.

DM UV Series Multimode Nanosecond Lasers Brochure
