Picosecond Lasers
-
Standard Picosecond Laser (3)
-

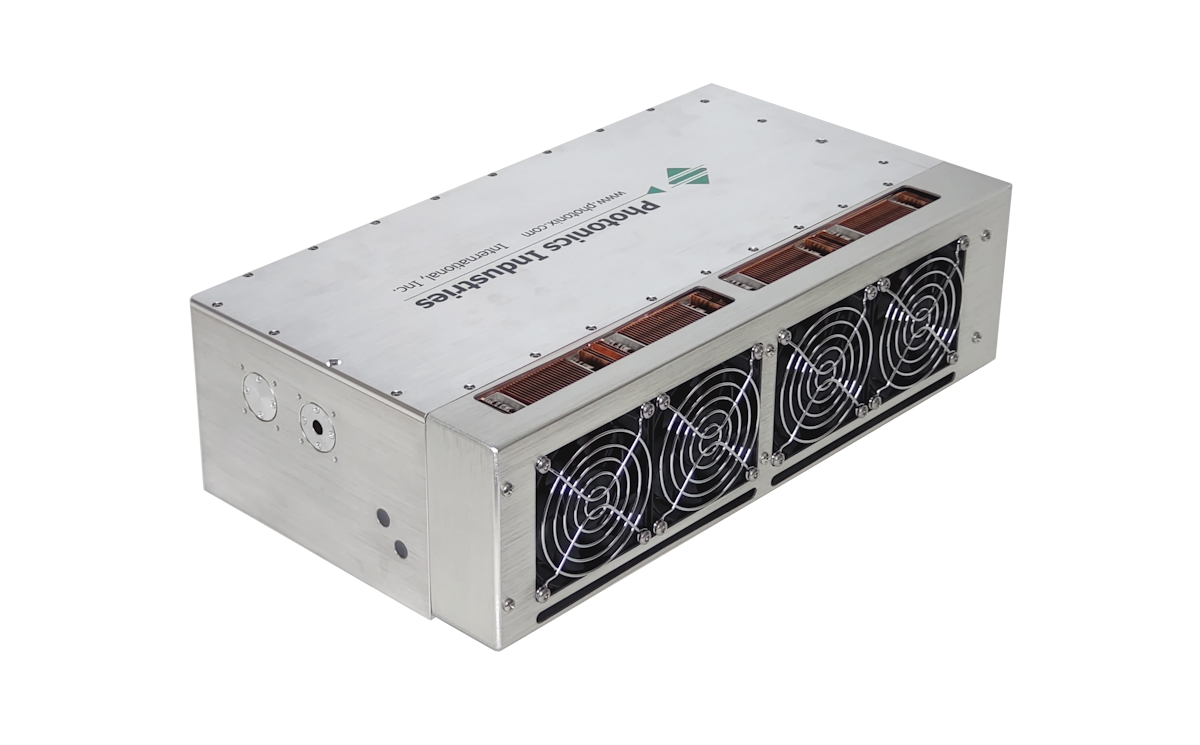

RX1 Series Low Power Picosecond Lasers
Low Power Picosecond LasersHigh single pulse energy: Up to > 250 µJ at 100 kHz, RX1 IR models
RX1-1064-10 | RX1-1064-35
RX1-532-5 | RX1-532-20
RX1-355-3 | RX1-355-10
RX1 Series Picosecond Lasers Brochure
Features
- Short pulse laser: ~10 ps for IR, ~7 ps for Green & UV; Option up to ~30 ps available
- Wide range of wavelengths: 1064 nm, 532 nm, 355 nm, MWB, MWS, & 266 nm options on request
- Smallest, all-in-one (AIO), high power picosecond laser on the market: Up to 35 W IR, 25 W GRN, or 10 W UV
- Highest efficiency picosecond laser with the lowest power consumption: < 400 W typical
- High repetition rates: Options up to 8 MHz or ~32 MHz
- Excellent TEM00 beam, and Pointing Stability: Typical M2 < 1.2; < 20 μrad
- Exceptional and Versatile Pulse Control: PEC (Power or Pulse Energy Control). PSO (Position Synchronized Output) mode for external triggering to any arbitrary PRF while maintaining a constant, stable pulse energy with low jitter. Burst Mode for individually controllable pulses in burst envelopes of up to 10 pulses with intra-burst pulse separation of ~31 ns. POD (Pulse-On-Demand) pulse bursts can be triggered internally, externally, or continuously, while maintaining constant pulse energy.
Overview
Photonics Industries’ RX1 Series low power picosecond lasers offer high performance, high precision, and robust form factor for the most demanding industrial as well as scientific applications. Photonics Industries is proven, with over a thousand picosecond lasers shipped worldwide, to meet and fulfill precision needs in manufacturing, scientific research, and new, emerging requirements necessitating ever smaller pulse widths in the ultrafast regime.
RX1 Series Picosecond Lasers Brochure
RX1_Series_Brochure_20231102 -
RX2 Series Mid Power Picosecond Lasers
Mid Power Picosecond LasersHigh single pulse energy: Up to ~600 µJ single pulse energy IR
RX2-1064-60 | RX2-1064-100
RX2-532-40 | RX2-532-70
RX2-355-20 | RX2-355-28
RX2 Series Picosecond Lasers Brochure
Features
- Wide range of wavelengths: 1064 nm, 532 nm, 355 nm, MWB, MWS, & 266 nm options on request
- Smallest, all-in-one (AIO), high power picosecond laser on the market: Up to 100 W IR, 70 W GRN, or 28 W UV, In the small RX2 form factor.
- Highest efficiency picosecond laser with the lowest power consumption: < 700 W typical
- High repetition rates: Options up to 8 MHz or ~32 MHz
- Excellent TEM00 beam, and Pointing Stability: Typical M2 < 1.2; < 20 μrad
- Exceptional and Versatile Pulse Control: PEC (Power or Pulse Energy Control). PSO (Position Synchronized Output) mode for external triggering to any arbitrary PRF while maintaining a constant, stable pulse energy with low jitter. Burst Mode for individually controllable pulses in burst envelopes of up to 10 pulses with intra-burst pulse separation of ~31 ns. POD (Pulse-On-Demand) pulse bursts can be triggered internally, externally, or continuously, while maintaining constant pulse energy.
Overview
Photonics Industries’ RX2 Series mid power picosecond lasers offer high performance, high precision, and robust form factor for the most demanding industrial as well as scientific applications. Photonics Industries is proven, with over a thousand picosecond lasers shipped worldwide, to meet and fulfill precision needs in manufacturing, scientific research, and new, emerging requirements necessitating ever smaller pulse widths in the ultrafast regime.
RX2 Series Picosecond Lasers Brochure
RX2_Series_Brochure_20231102 -
RX3 Series High Power Picosecond Lasers
High Power Picosecond LasersHigh power output up to 150 W at 1064 nm, with 10 ps pulse width
RX3-1064-150 | RX3-532-100 | RX3-355-50
RX3 Series Picosecond Lasers Brochure
Features
- Short pulse laser: ~10 ps for IR, ~7 ps for Green & UV; Option up to ~50 ps available
- Wide range of wavelengths: 1064 nm, 532 nm, 355 nm; MWB, MWS, & 266 nm options on request
- Smallest, all-in-one (AIO), high power picosecond laser on the market
- High efficiency picosecond laser with low power consumption: ~1000 W typical
- High repetition rates: Up to 8 MHz
- Excellent TEM00 beam, and Pointing Stability: Typical M2 < 1.2; < 20 μrad
- Exceptional and Versatile Pulse Control: PEC (Power or Pulse Energy Control), PSO (Position Synchronized Output) support for external triggering to any arbitrary PRF while maintaining a constant, stable pulse energy with low jitter, Burst Mode for individually controllable bursts of up to 10 pulses with a separation of 14 ns, POD (Pulse-On-Demand) pulse bursts can be triggered internally, externally, or continuously, while maintaining constant pulse energy
Overview
Photonics Industries’ RX3 Series high power picosecond lasers offer ideal performance, and the smallest overall form factor in the market of industrial picosecond lasers. Photonics Industries is proven, with over a thousand picosecond lasers shipped worldwide, to meet and fulfill precision needs in manufacturing, scientific research, and new, emerging requirements necessitating ever smaller pulse widths in the ultrafast regime.
RX3 Series Picosecond Lasers Brochure
RX3_Series_Brochure_20231016
-
-
High Pulse Energy Picosecond Laser (1)
-
RGLX Series
Picosecond LasersHigh Pulse Energy Picosecond LasersHigh pulse energy: Up to 4 mJ at 1 kHz IR, & Up to 2.5 mJ at 1 kHz Green. With 25-50 ps pulse widths.
IR: RGLX-1064-2 | RGLX-1064-4
GRN: RGLX-532-1.5 | RGLX-532-2.5
RGLX Series High Pulse Energy Picosecond Lasers Brochure
Features
- Variable repetition rate: single shot to 5kHz
- Excellent beam quality (M2<1.3)
- Small form factor, compact
- Industrial grade
- Diode pumped technology
- Wide range of powers and harmonic options available
- All-in-one single box design
Overview
Photonics Industries’ RGLX Series picosecond lasers offer low pulse widths (< 25 ps), high pulse energies (up to 4 mJ), and high repetition rates (up to 5 kHz). With no separate utility module, the all-in-one (AIO) RGLX Series is a pioneering laser for research, especially fulfilling new and emerging requirements in laser ranging (SLR), and also offers industrial sectors the pulse energy, repetition rate, and convenient AIO package for integration into systems for efficient micro-processing and meso-processing.
RGLX Series High Pulse Energy Picosecond Lasers Brochure
RGLX_Series_Brochure_20221222
-
